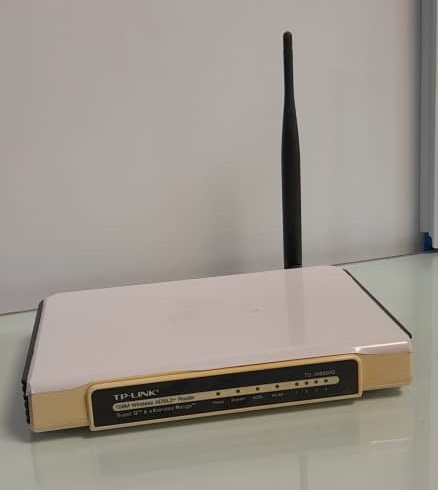

مودم ADSL تی پی لینک TD-W8920G (کارکرده)
مشخصات :
ADSL Features
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.dmt)
ITU-T G.992.2 (G.lite)
ITU-T G.994.1 (G.hs)
ITU-T G.992.3 (G.dmt.bis)
ITU-T G.992.5
Max 6 kilometers
Data Rates
Downstream: Up to 24Mbps
Upstream: Up to 3.5Mbps (With Annex M enabled)
ATM Features
UNI 3.1,ATM Adaptation Layer Type 5-AAL5
Multiprotocol encapsulation over ATM (RFC 1483)
UBR, CBR, VBR-rt, VBR-nrt
Supports 8PVCs
PPP Features
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC 2516)
Switching Features
IGMP snooping
IGMP multicast
IEEE 802.1d transparent learning bridging
Routing Features
Classical IP and ARP over ATM (RFC 1577/2225), MER, RIP V1/V2
Static routing, IP, TCP, UDP, ARP
NAT, NAPT, DNS, DDNS, DHCP Server
UPnP, Virtual Server, DMZ, Port Trigger
SIP, H323 ALG
Wireless Features
Complies with IEEE 802.11g, IEEE802.11b
11g: Up to 108Mbps
Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication
Provides 64/128/152bit WEP encryption security and wireless LAN ACL (Access Control List)
Wireless operating range: Indoor up to100m, Outdoor up to 300m
Max wireless transmit power: 17dbm
Antenna power: 3dbi
Security
NAT
IP filterling
MAC filtering
Parental control
VPN Pass Through
IPSec/PPTP/L2TP Pass-through
QoS
IP Type of service(ToS)
802.1p
Device Management
HTTP, Console
Administration and operation software (firmware) upgradable locally by web(HTTP), console(TFTP)
CWMP(TR-069)
Hardware Specification

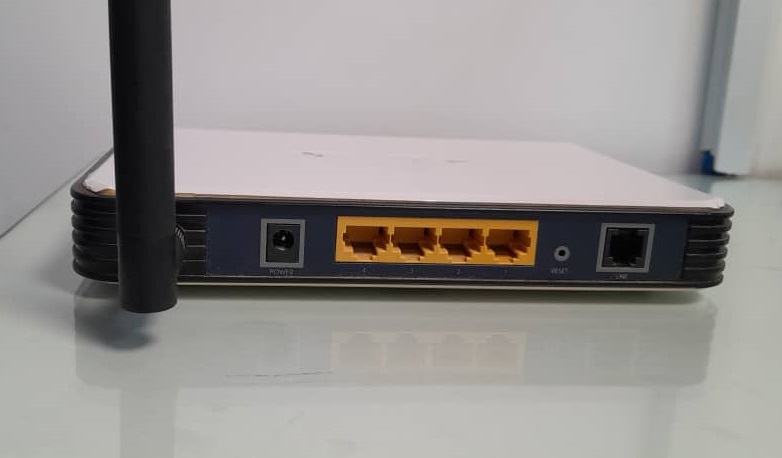

Ports
4 10/100M LAN Ports(RJ45)
1 Line Port(RJ11)
LED Indicators
Power, System, ADSL, WLAN, LAN1~4
Dimensions (W*D*H)
7.9*5.5*1.1 in.(200*140*28 mm)
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
